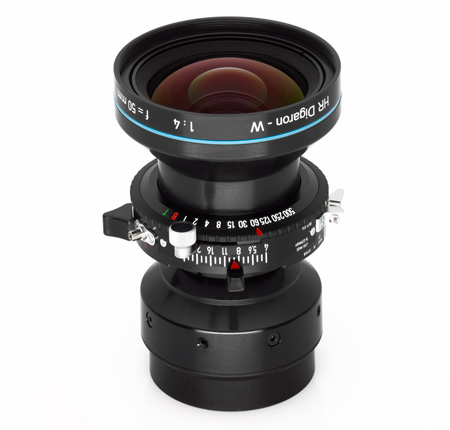

Rodenstock HR Digaron-W 50mm
The lens series HR Digaron-W with an image circle from 90 mm to 125 mm is the first choice for large sensors from 37x49mm up to 36x56mm or 40x54mm and for technical cameras, if parallel lens shift and lens swing and tilt require large camera movement.
For an optimum performance of the highest-resolution sensors with 80 megapixels and more and a pixel pitch down to 6 µm, the optical design of both series HR Digaron-S and HR Digaron-W includes the thickness of the sensor glass plate.
Rodenstock HR Digaron-W 50mm
Technical Data:
| Recommended cameras |
ALPA, Cambo, Linhof |
| Recommended working f-stop |
5.6-8 |
| Recommended scale range |
∞ – 1/10 |
Movement ranges at sensor sizes:
| Image circle for scale ∞ |
90mm |
| 33x44mm |
↑→ 23/20 |
| 37x49mm |
↑→ 19/17 |
| 40x54mm |
↑→ 16/13 |
Dimensions and weights:
| Push on diameter |
70mm |
| Filter thread |
E67 |
| Rear mount diameter |
51.0 mm |
| Flange focal length at scale ∞ (Copal version) |
76.0 mm |
| Flange to lens end (Copal version) |
44.3 mm |
| Overall length |
98.4 mm |
| Weight (version Copal) |
550 g |
Shutter Types:
| Copal 0 |
|
| Control mode |
Mechanical |
| Shutter speeds range |
B, T, 1/500-1s |
| f-stop range |
4-32 |
| Rodenstock eShutter 0 |
|
| Control mode |
Electronic |
| Shutter speeds range |
T, 1/125-32s |
| f-stop range |
4-32 |
Accessories:
| Focus mount (dimensions and weights in version Copal) |
|
| Focusing range with Focus Mount |
∞ – 0.8 m |
| Flange focal length at scale ∞ with Focus Mount |
57.3 mm |
| Flange to lens end with Focus Mount |
25.6 mm |
| Weight, lens with Focus Mount |
675 g |
| Centerfilter, Exposure correction -2,5 f-stops |
|
| Mounting thread |
– |
| Front thread |
– |
