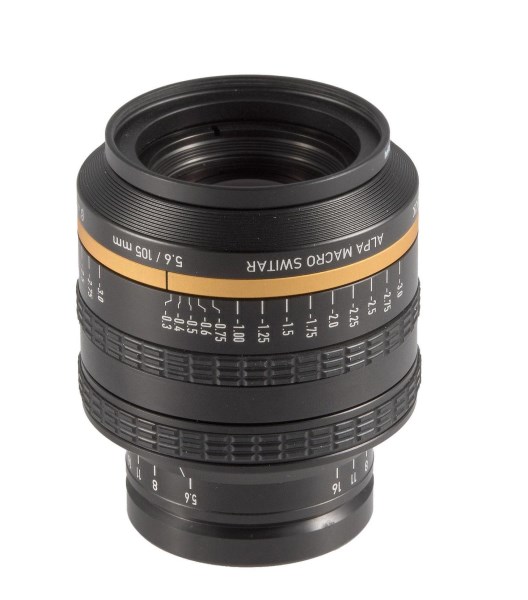

ALPA Apo Macro Switar f5.6 105mm
Added to basket!
Description:
The Rodenstock / ALPA Macro Switar 5.6/105 mm is a high-performance lens for image scales of 1:4 to 4:1. The user can optimize the specific image scale via a ring-operated floating element which covers 1:3 to 3:1. Sharpness is extraordinary and only limited by diffraction. The ultra-low distortion nearly vanishes at 1:1 and beyond. The chromatic aberration is minimized and contrast performance is superior.
Product Code:
A160018105
ALPA Apo Macro Switar f5.6 105mm

More Information:

The Rodenstock / ALPA Macro Switar 5.6/105 mm offers a constant image circle of 82 mm over the full range of image scales. The image circle allows therefore movements for shift and tilt.
The lens features a 12 blade aperture (open and closed down) which offers a perfectly round aperture image for an outstanding Bokeh: out of focus highlights are rendered as homogeneously circular airy disks.

Product remarks: Rodenstock / ALPA Macro Switar 5.6/105 mm, custom made for ALPA by Rodenstock; without shutter to be combined particularly with ALPA 12 FPS; recommended reproduction scale 1:4 to 4:1; optimizable by continuous adjustment ring from scale 1:3 to 3:1; V Groove adaptation to ALPA universal bellow or to individually assembled extension tubes.

Due to its construction there is no space for a classical leaf shutter. It is used best together with the ALPA 12 FPS or any ALPA setup with a digital back capable of electronic shutter



Specifications:

  • Focal Length: 105mm
  • Aperture: f5.6
  • Image circle: 82mm
  • Filters Thread: 43mm
  • Width: 61.6mm
  • Height: 96.4mm
  • Weight: 530g
  • Note: Image scale 1:4 to 4:1
