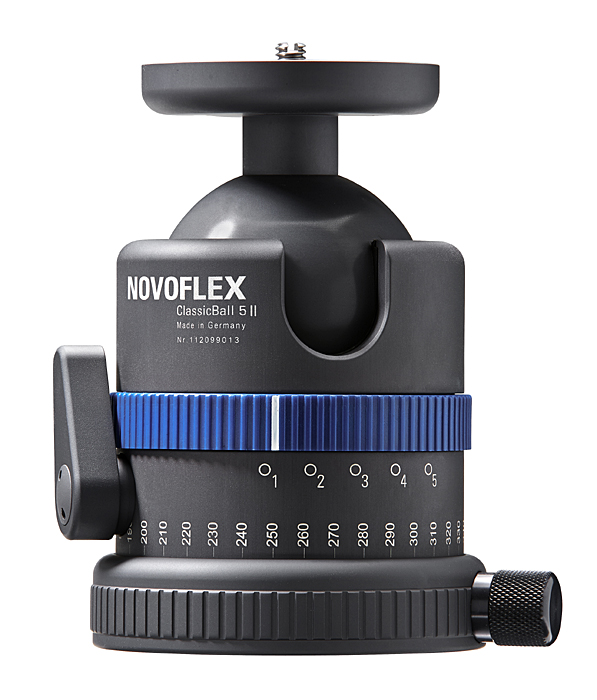

Novoflex | Classic Ball 5 II
Added to basket!
Description:
The ClassicBall 5 II is a top-quality ball and socket head with several innovative features, and with a high payload-to-weight ratio. Version II now can be used conventionally or upside down to facilitate accurate panning.
Top and bottom connections are reversible 1/4" or 3/8" screw, or 3/8" socket (this can be adapted to 1/4" if required).
Three vertical 90° slots allow 180° side-to-side movement, and friction control is by click stops, which allows a precise, repeatable setting for different loads.
The ball lock lever has a short throw and minimal bulk to avoid snagging and give easy use, even with gloves.
Product Code:
NVCB5V2
Novoflex | Classic Ball 5 II

Panorama base with 360° laser engraved scaling with a built-in spirit level for use when the head is inverted. This feature enables perfectly level panning to be achieved without the need to adjust the tripod legs.

Three vertical 90° openings for the ball neck.

Advanced friction control system gives precisely repeatable and defined friction presets.

Low-profile and easy to grasp locking, friction and panning knobs.

No shift in ball position when locking - a great boon for macro photography.

Grease-free mechanism.

Novoflex Classic Ball 5 II Specs:

Type:  Ball head

Quick release:  No

Revolving base:  Independently lockable

Friction control:  Yes

Forward tilt:  +90°

Side tilt:  -90° to +90°

Height:  11.3cm

Weight:  0.87kg

Max load:  12kg

Base connection:  1/4" or 3/8"

Base diameter:  79mm

Spirit level:  No
