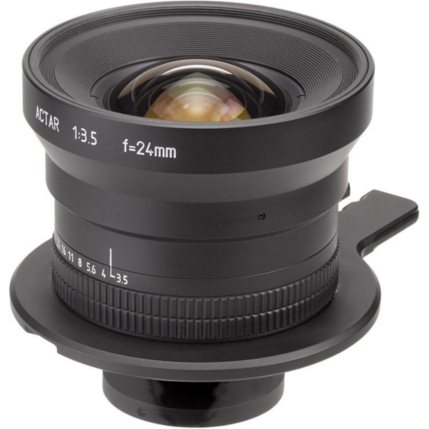

Cambo Actar 24mm
Added to basket!
Description:

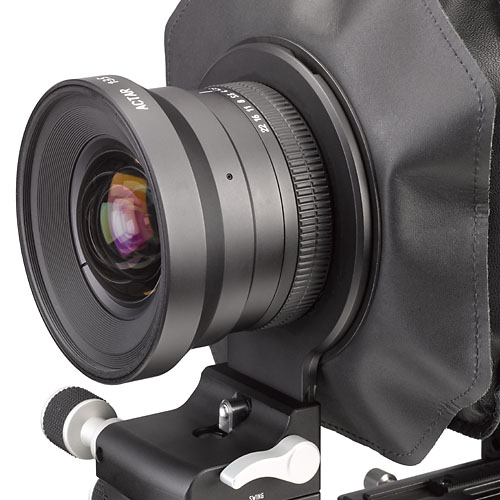

The Cambo ACTAR-24 is a lens dedicated to the Cambo Actus in combination with a DSLR or mirrorless camera, mounted on the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 24mm. This makes it an ideal companion for landscape and architectural work. With a relatively light weight and a modest size it is easy to carry with you to location shootings.
Product Code:
CAM24
Cambo Actar 24mm

The Cambo ACTAR-24 is a lens with almost no geometrical distortion.

As the image circle is 60mm, there is an optically horizontal shift of 10mm each side when using a full frame (24x36) sensor in landscape mode, and 12mm in portrait mode.

When using a smaller APS-C sensor the shift possibilities grow to 15mm and 17mm. Of course vertical shifts have the same possible numbers in reverse order.

The ACTAR-24 can be used with Fujifilm GFX50 series but without shift, only with tilt and swing.

The optical design of this lens is a 16 element in 11 groups, multicoated to achieve the best contrast. The aperture range is from f/3.5 to f/22 in half stop increments. Please note that the aperture is manual and there are no electronical connections available nor needed.

Technical specifications:

  • focal length: 24mm
  • aperture range: f 3.5 – 22 (manual)
  • lens construction: 16 elements / 11 groups
  • filter thread: m82
  • image circle: 60mm
  • coating: multi coated
  • build for: Cambo Actus (non DB)
  • size L x W x H: 95 x 98 x 130 (includes Actus mount)
  • weight: 660 gram



Related accessory

Compendium / lenshood for ACTAR 24
