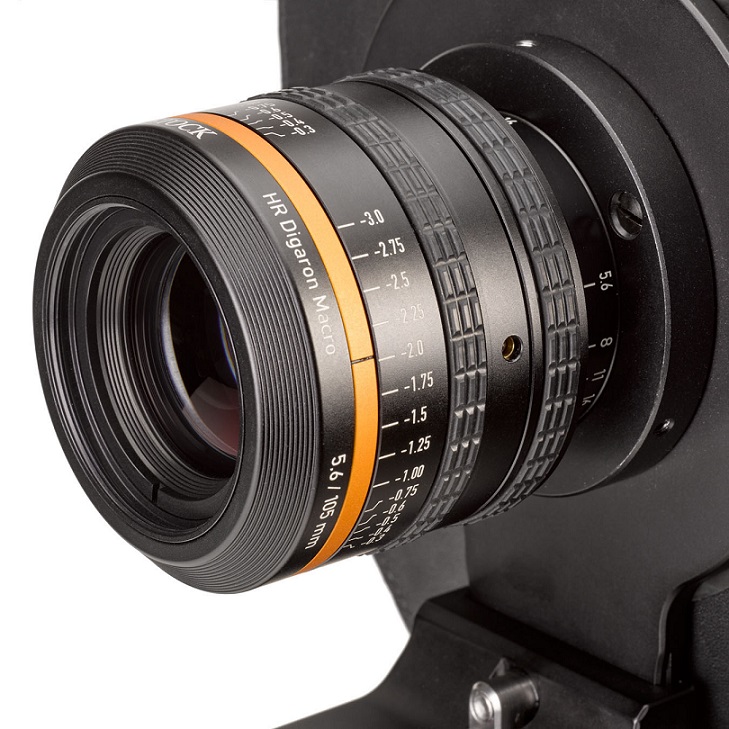

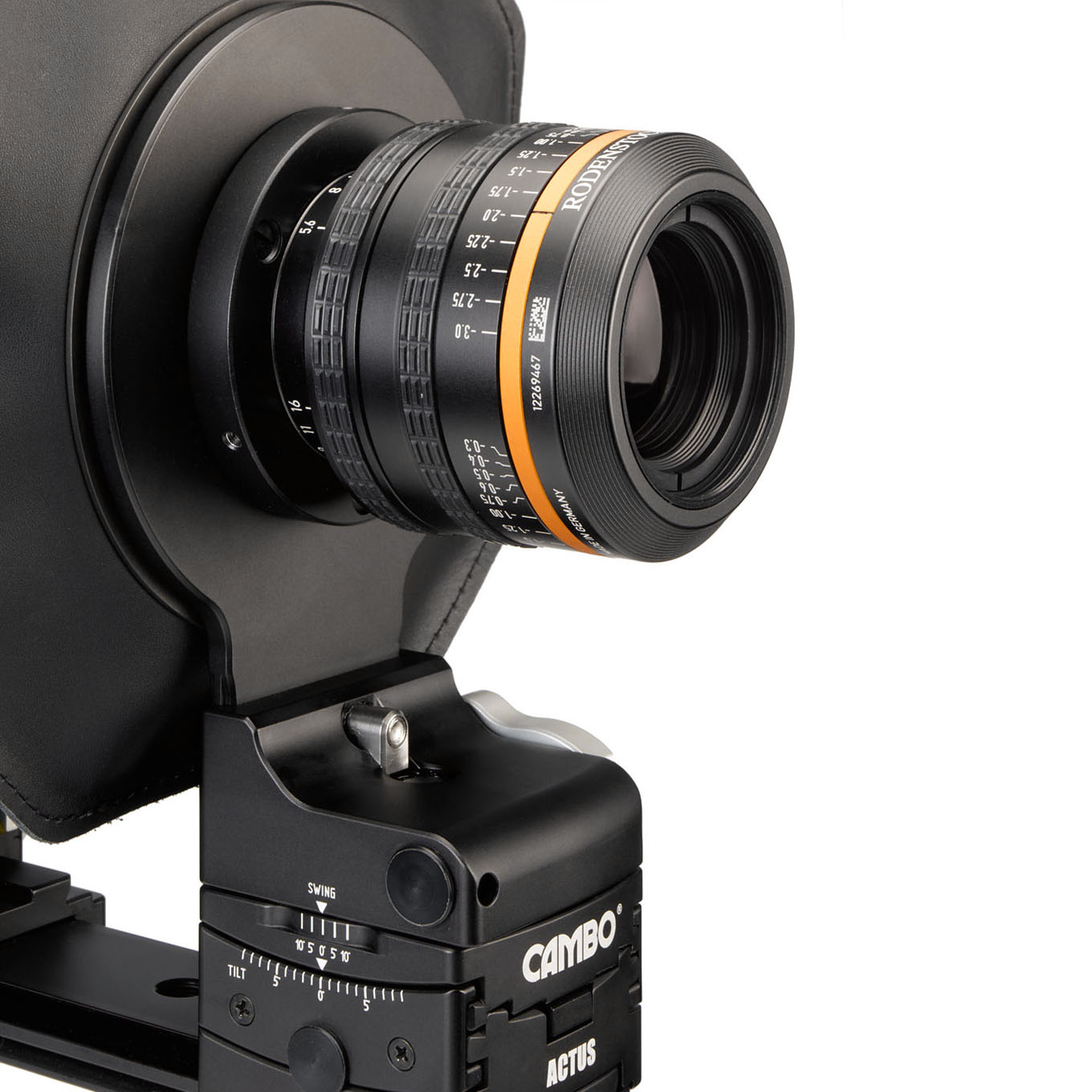

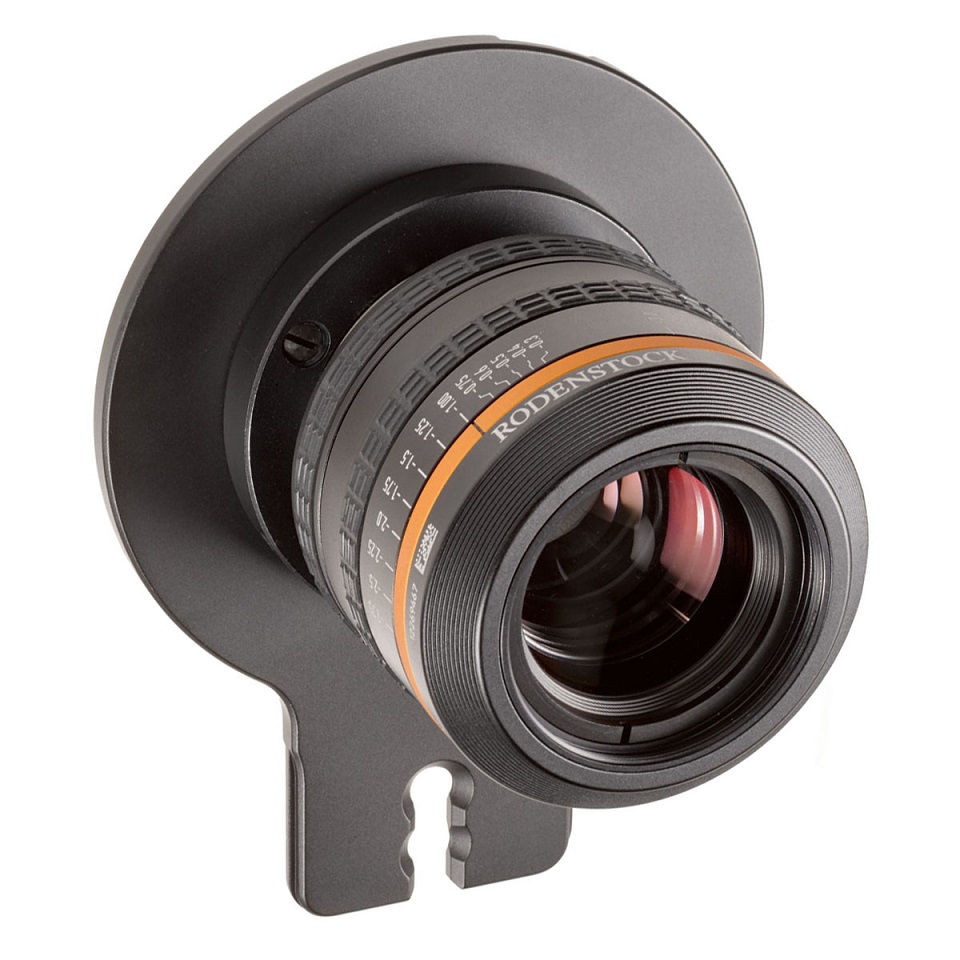

Cambo Actar 105mm HR Macro
Added to basket!
Description:

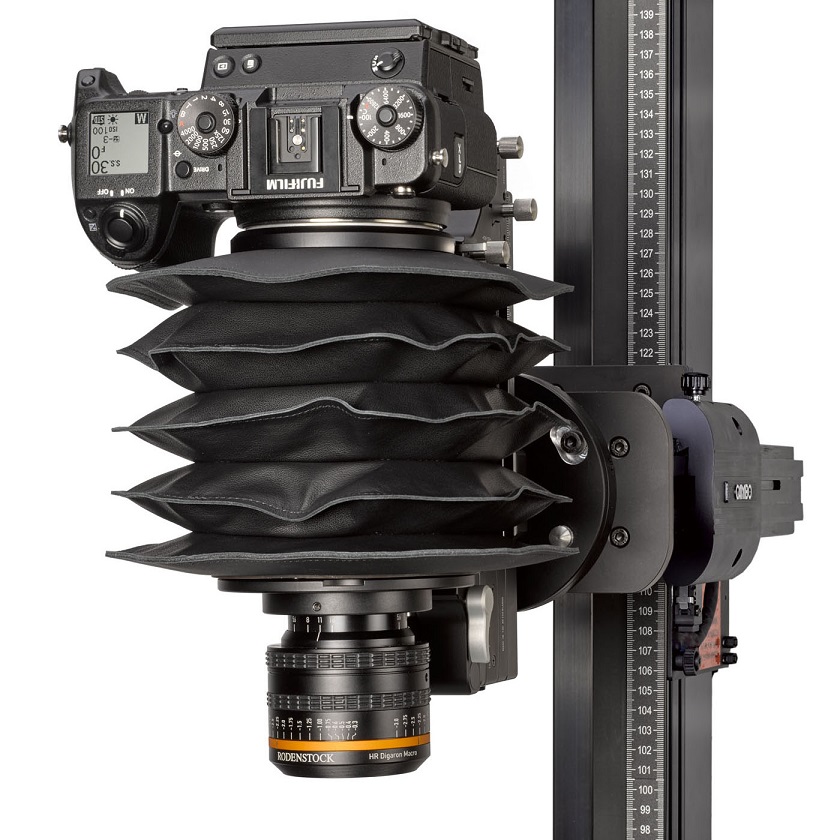

Cambo’s ACTAR-105 is based on the Rodenstock HR-Macro lens with a focal length of 105mm, dedicated to the Cambo Actus series. It is optimised for maginifications between 1:4 and 4:1, with a floating element for the best performance at the set magnification. It can be used on the Actus in combination with mirrorless and DSLR camera bodies, as the lens has no shutter.
Product Code:
CAM105
Cambo Actar 105mm HR Macro

The design of this lens is build of 8 elements in 4 groups.

 Please note that the aperture is manual and there are no electronical connections available nor needed.

 Technical specifications:

  • focal length: 105mm
  • aperture range: f 5.6 – 16 (manual)
  • lens construction: 8 elements / 4 groups – 1 floating group
  • filter thread: m43
  • image circle: 82mm
  • coating: multi coated
  • build for: Cambo Actus (non DB)
  • size L x W x H: 75 x 98 x 130 (includes Actus mount)
  • weight: 548 gram
