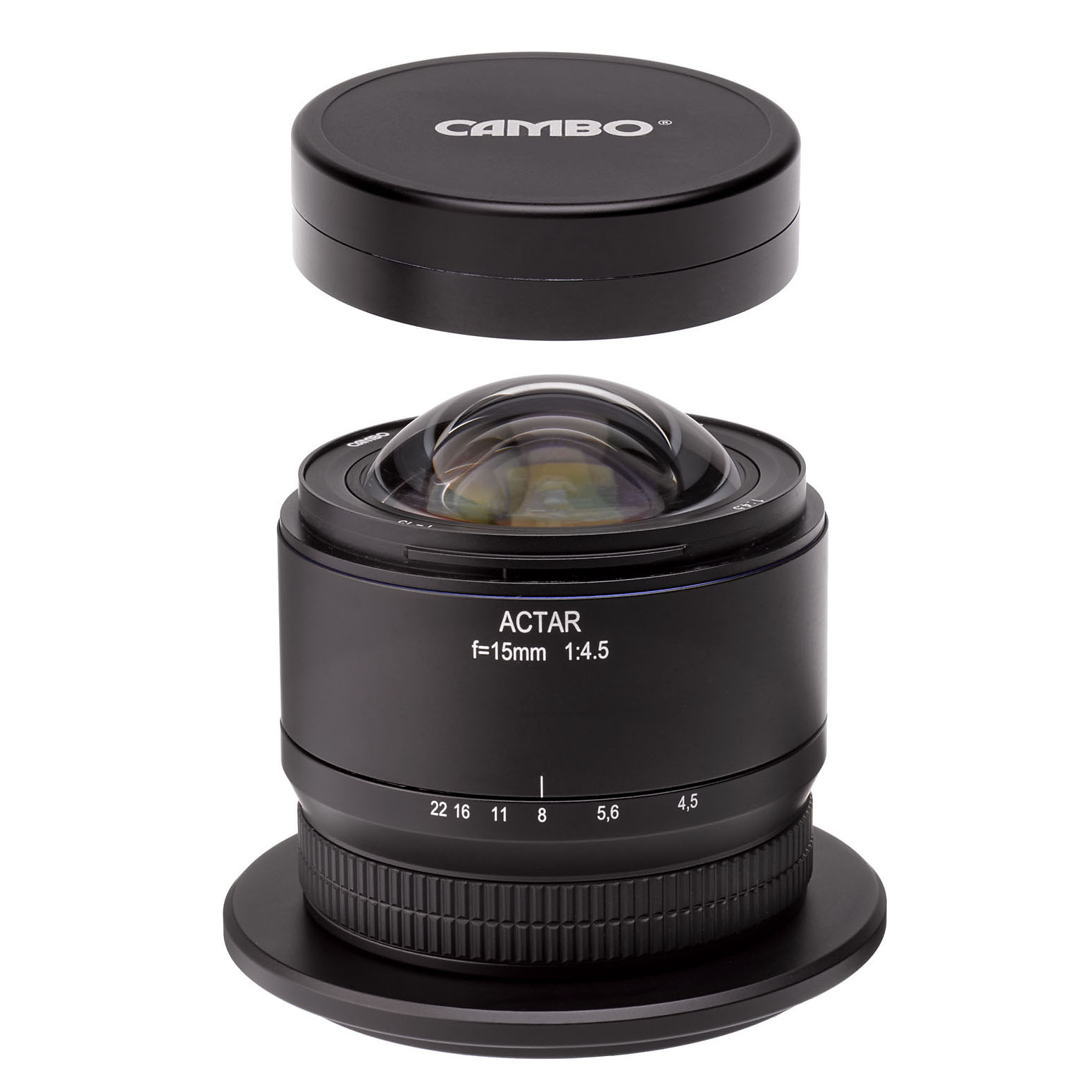

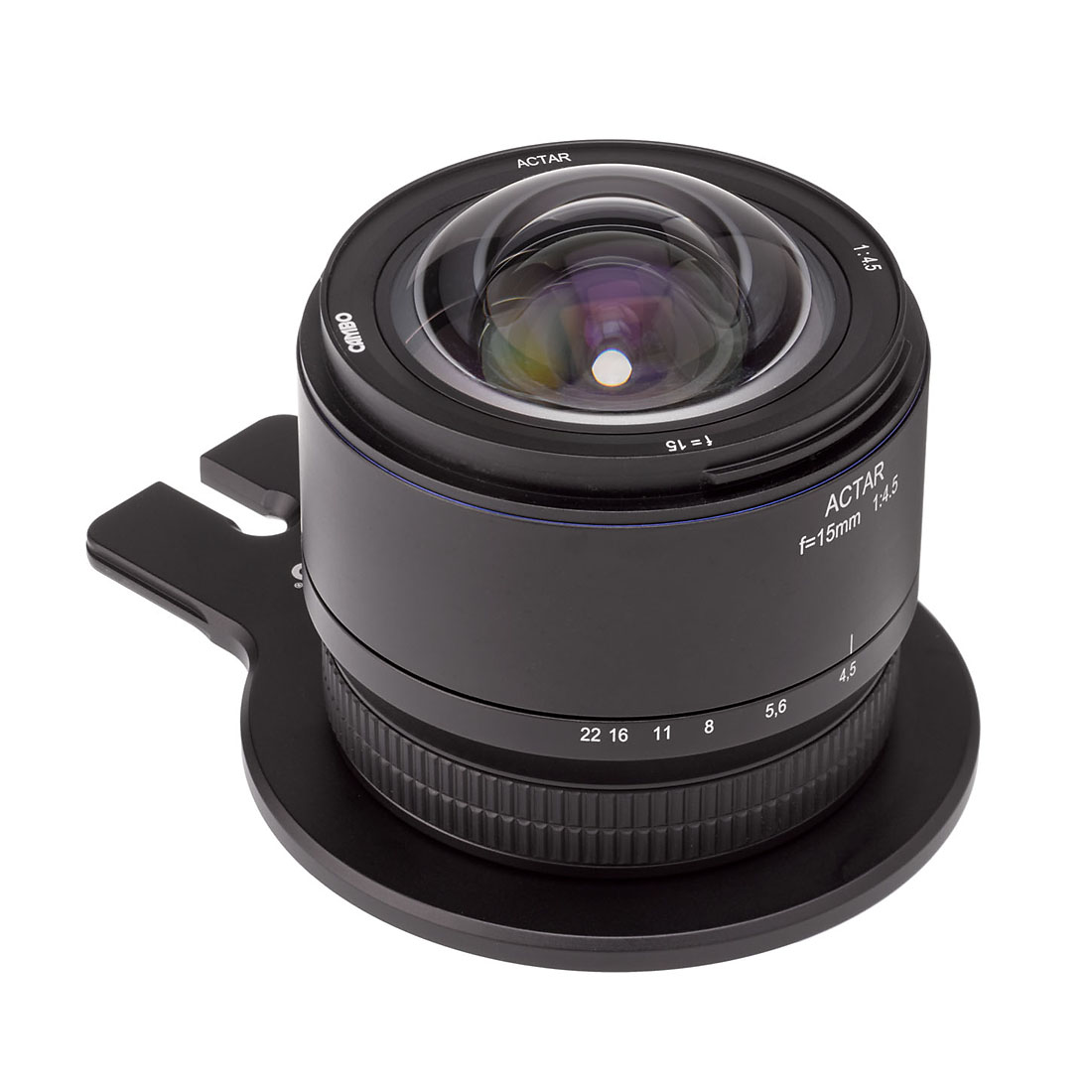

Cambo Actar 15mm
Added to basket!
Description:
The ACTAR-15 is an Ultra Wide Angle Lens, dedicated to the Cambo Actus system in combination with a DSLR or mirrorless camera.
The ACTAR-15 is a lens with almost no geometrical distortion. As the image circle is over 65mm, there is an optically allowed horizontal shift possible of 15mm each side when using a full frame (24x36) sensor in landscape mode, and 12mm in portrait mode. Using of the ACTAR-15 on the Actus with Fujifilm GFX 50/100 series is possible up to 6 mm of shift.
The optical design of this lens is a 17 element in 11 groups. The aperture range is from f/4,5 to f/22 in half stop increments. Please note that the aperture is manual and there are no electronical connections available nor needed.
Product Code:
CAM15
Cambo Actar 15mm



Technical Specs:

Please note this lens has no front filter thread



  • Focal length: 15 mm
  • Aperture range: f/4.5- 22 (manual)
  • Image Circle: 65mm
  • Lens construction: 17 elements / 11 groups
  • Coating: Limiting Flare and Ghosting
  • Size: 95x98x130 mm (including lens cover)
  • Weight: 760gr
