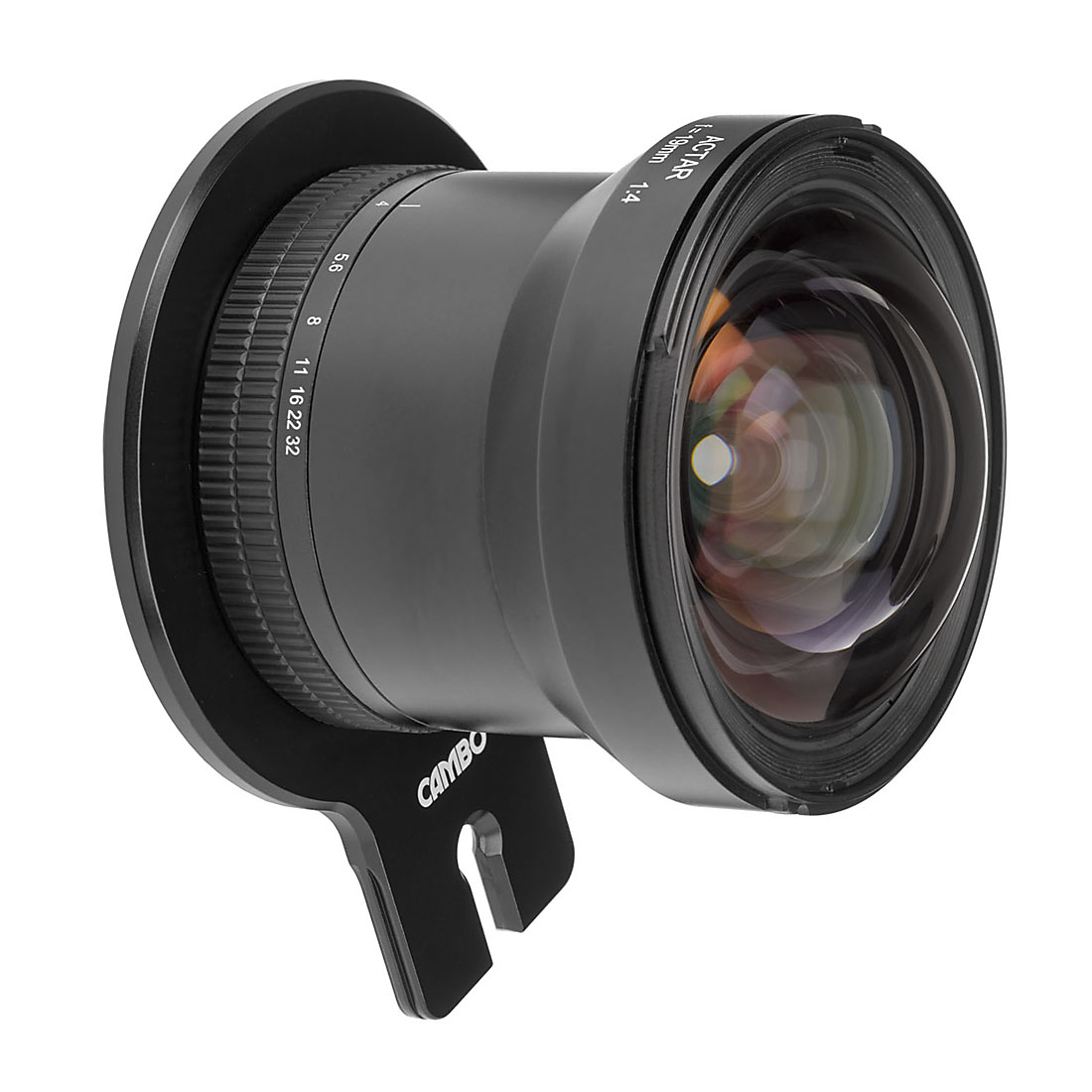

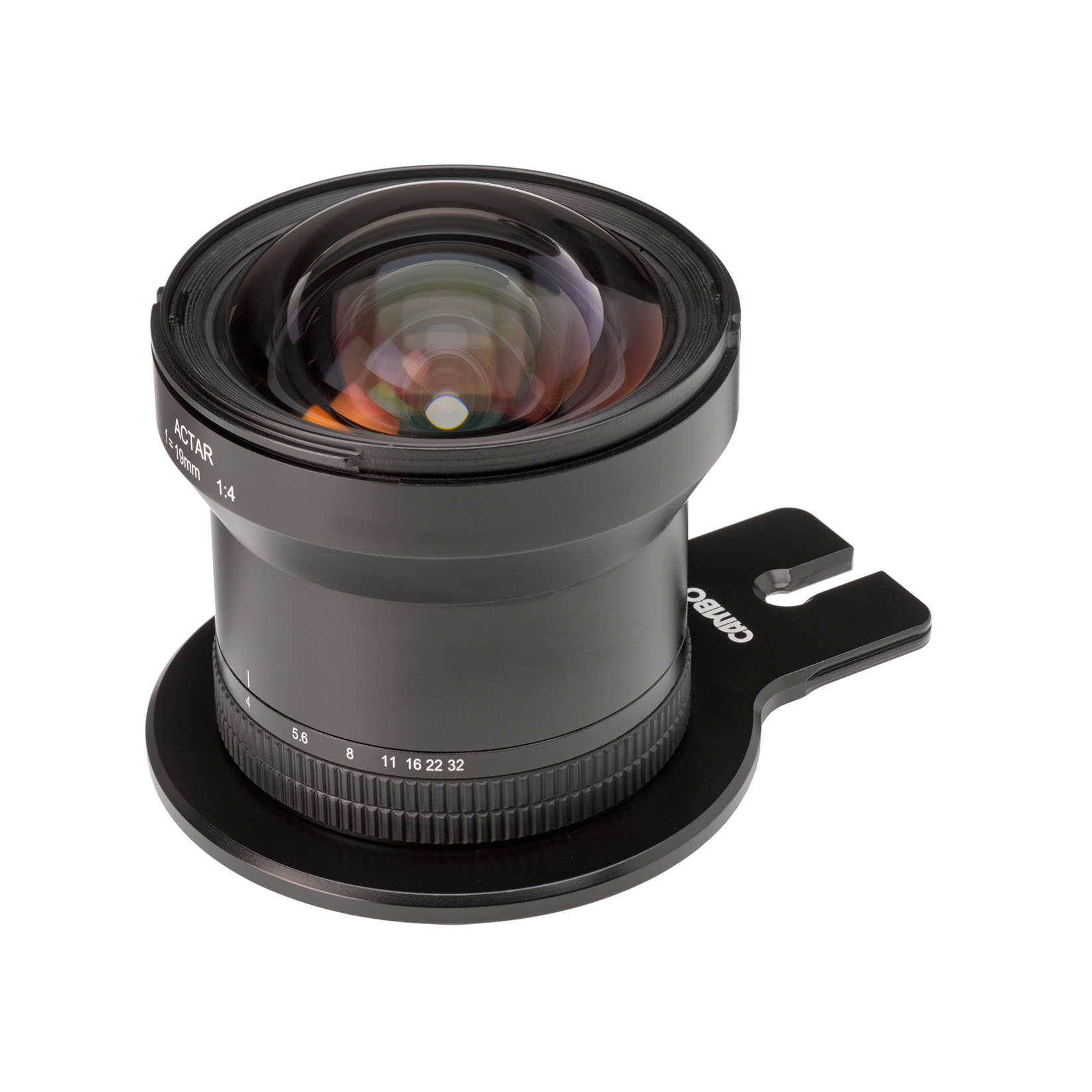

Cambo Actar 19mm
Added to basket!
Description:

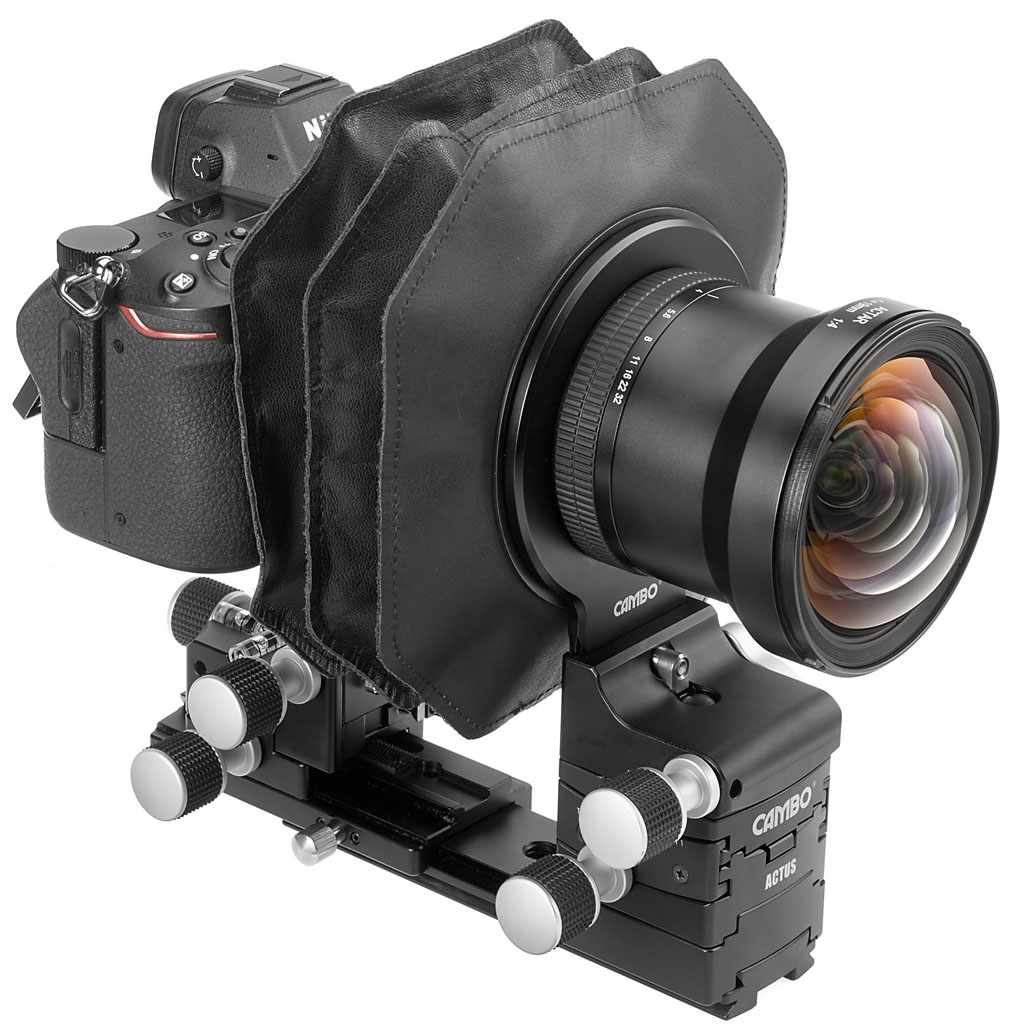

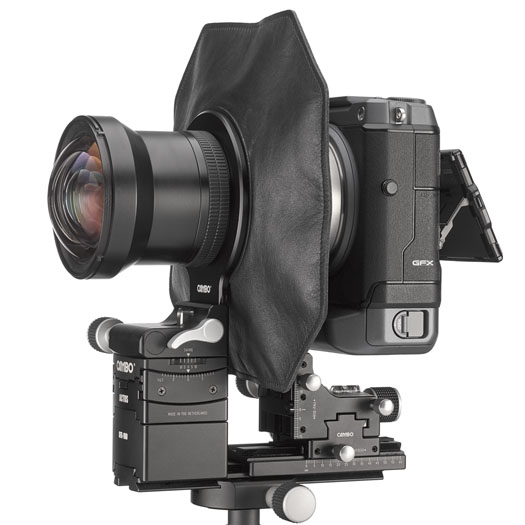

The Cambo ACTAR-19 is a lens with almost no geometrical distortion. As the image circle is over 71mm, there is an optically allowed horizontal shift possible of 15mm each side when using a full frame (24x36) sensor in landscape mode and 18mm in portrait mode. Use of the ACTAR-19 on the Actus with the 33x44 Mirrorless sensor of the GFX and X1D series is possible with at least 9mm of shift.
When using a digital back with sensor activated electronic shutter on the Actus-DB or XL, the image circle will cover the sensor of 54x41 mm size.
Please note that the aperture is manual and there are no electronical connections available nor needed.
Product Code:
CAM19
Cambo Actar 19mm

Technical Specs:

  • Focal length: 19 mm
  • Aperture range: f/4- 32 (manual)
  • Image Circle: 71mm
  • Lens construction: 17 elements in 13 groups (including 3 ED glass, 2 aspherical lens elements, and lens elements with Nano Crystal Coat or fluorine coat)
  • Angle of view: 97° (73° with a DX-format camera)
  • Minimum focus distance: 0.25 m / 0.9 ft. from focal plane
  • Maximum reproduction ratio: 0.18x
  • of diaphragm blades: 9 (rounded diaphragm opening)
  • Perspective control: Horizontal and vertical tilt and shift. Shift of ±12 mm, tilt of ±7.5°
  • Rotation: 90° left and right with stops every 30°
  • Size: 121x102x132mm (including lens cover)
  • Weight: 880gr
