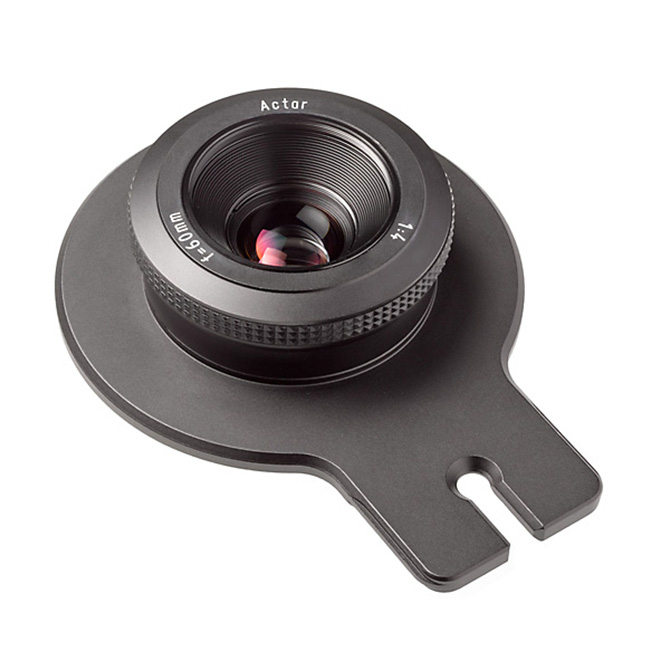

Cambo Actar 60mm
Added to basket!
Description:
The Cambo ACTAR-60 is a lens dedicated to the Cambo Actus in combination with a mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 60mm. This makes it an ideal companion for studio, landscape and architectural photographers. With a light weight and a small size it is easy to carry with you to location shootings.
Product Code:
CAM60
Cambo Actar 60mm

The ACTAR-60 is a lens with no geometrical distortion. As the image circle is 75mm, there is an optically allowed horizontal shift possible of 15mm each side when using a full frame (24x36) sensor in landscape mode, and 17mm in portrait mode. When using a smaller APS-C sensor the shift possibilities grow to 20mm. Of course vertical shifts have the same possible numbers in reverse order.

The optical design of this lens is a 6 element, of which all lenses are multicoated to achieve the best contrast. The aperture range is from f/4.0 to f/22.

Please note that the aperture is manual and there are no electronical connections available nor needed.

Technical specifications:

  • focal length: 60mm
  • aperture range: f 4.0 – 22 (manual)
  • lens construction: 6 elements
  • filter thread: m40.5
  • image circle: 75mm
  • coating: multi coated
  • build for: Cambo Actus (non DB)
  • size L x W x H: 41 x 98 x 130 (includes Actus mount)
  • weight: 300 gram
