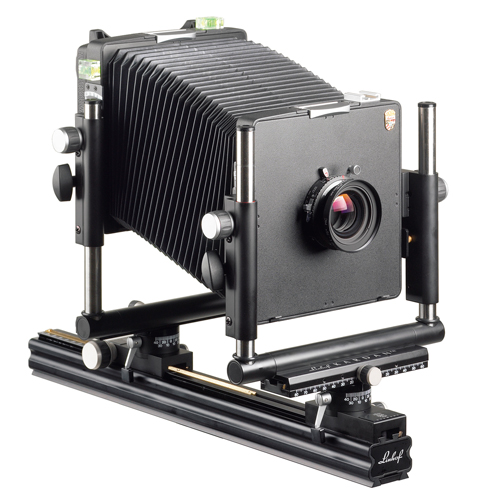

Linhof Kardan RE Camera
Added to basket!
Description:
Linhof Kardan RE Camera body only with Standard Bellows and Groundglass spring back.

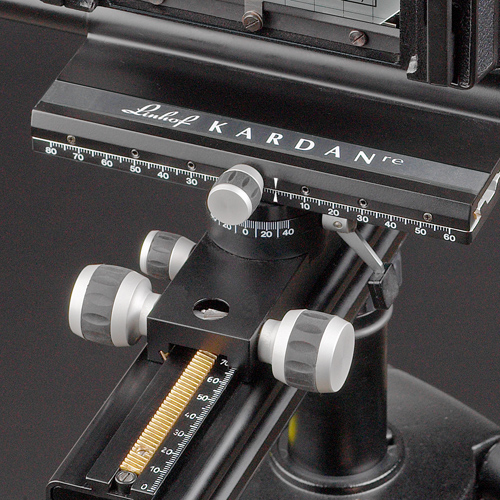

with micro drive focusing, improved operating elements and new scales. Adjustment facilities: direct large displacements, lateral and vertical shift at front and rear standard, vertical and horizontal tilt. Play-free solid brass micro-drive for extremely smooth focusing of the camera on the monorail. for lens boards and Ground Glass screens - please see separate section.
Product Code:
102
Linhof Kardan RE Camera
Lens standard

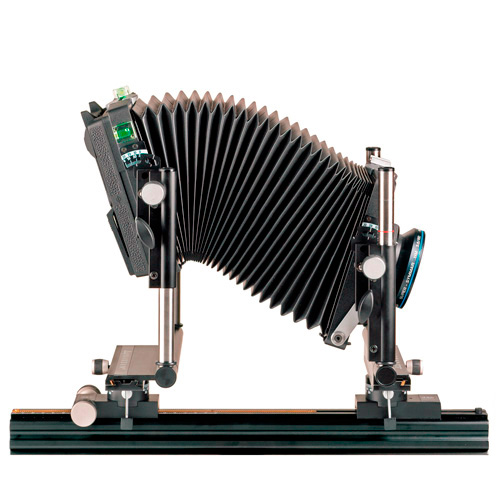

Central horizontal-axis: Lens center tilt 30° fwd. and 40° bkwd.

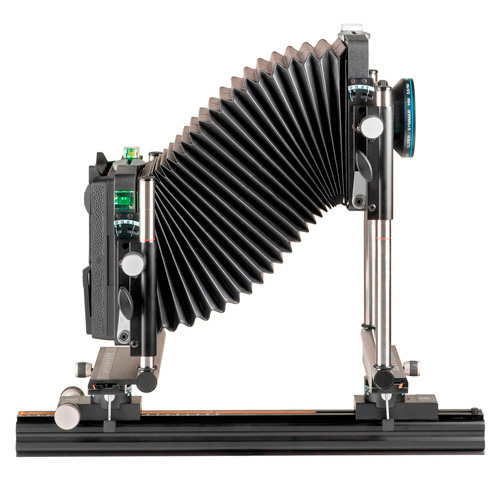

Parallel shifts, up – down: 55 mm
Lateral shifts: 70 mm left and right
Panorama: limited only by bellows

Dimension
Lenght: 47 cm
Width in working position: 25,5 cm
Height: 29 cm

Extension
max: 450 mm
min: with recessed lensboard and wide-angle bellows 47 mm

Rear standard

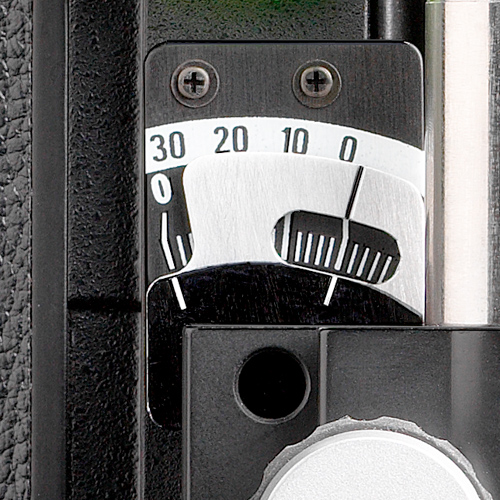

Central horizontal-axis: tilt 30° fwd. and 40° bkwd.
Parallel shifts, up – down: 55 mm
Lateral shifts: 70 mm left and right
Panorama: limited only by bellows
  Weight
3900 g (without lens)
