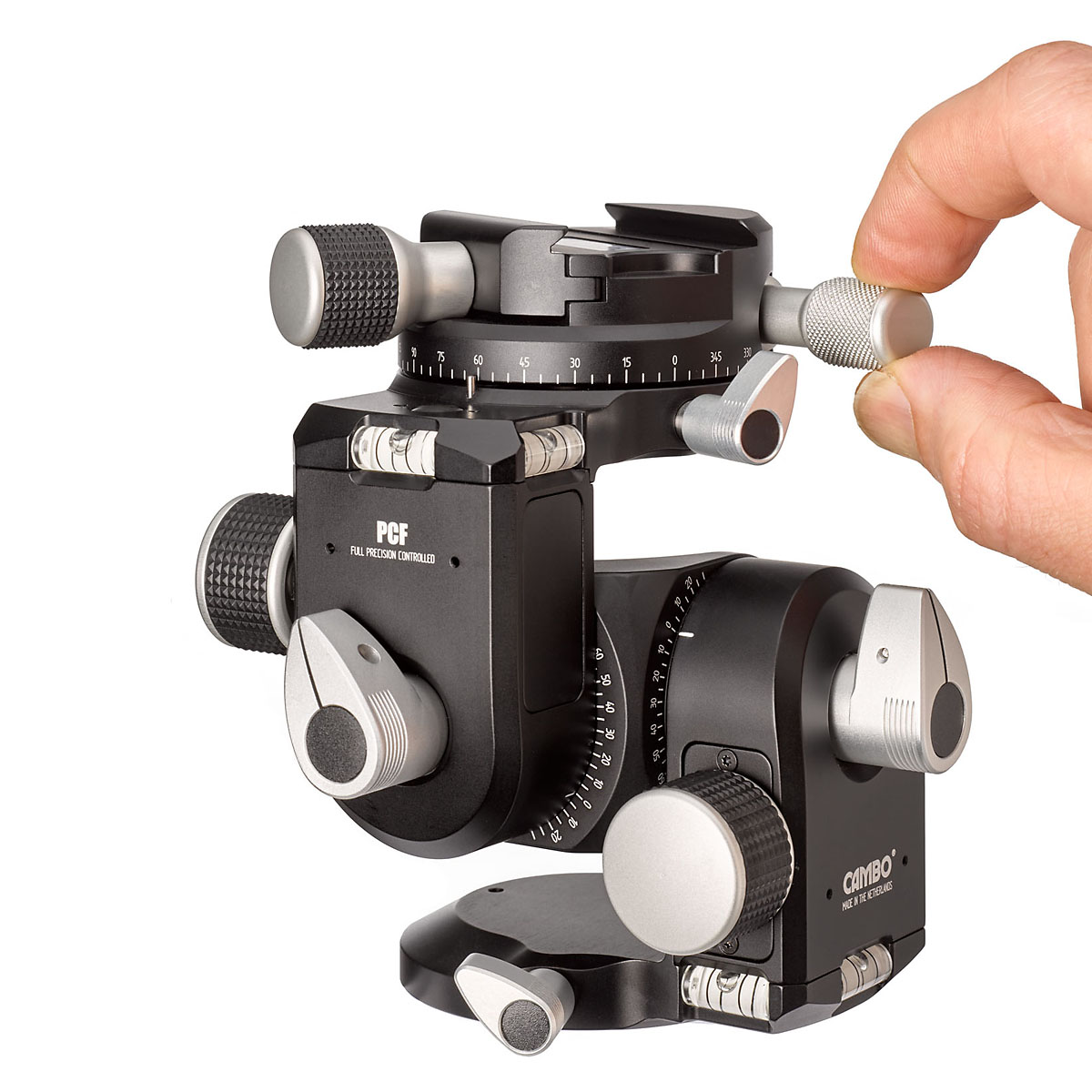

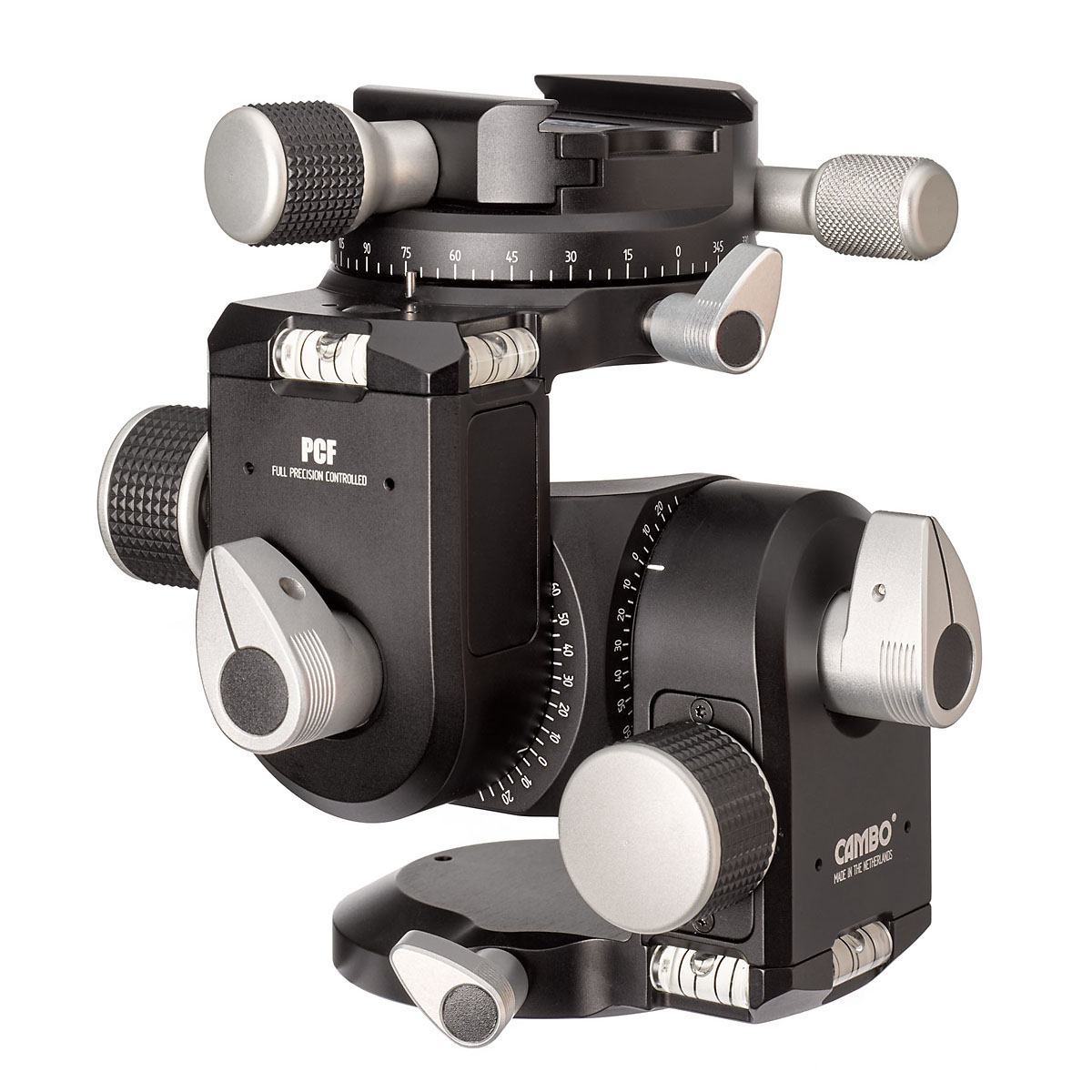

Cambo PCF Full Precision Geared Head
Added to basket!
Description:
Cambo PCF (full precision) tripod head has amazing flexibility. It can tilt, swing, rotate as if it were a ball head. It has precision gears for fine-tuned tilt and swing. The PCF has a geared panning of the top plate and additional geared rotation of the top platform.
All geared movements are self-locking and available in any position of the head. The bottom as well as the top can rotate 360*. After levelling, the top rotation can be used for panoramic shooting.
Product Code:
CAMPCF
Cambo PCF Full Precision Geared Head

Cambo PCF is a tripod head which features geared rotational movement around the X-Axis , Y-Axis and Z-Axis on the top, as well as double (top and bottom plate) manual rotation around the Z-axis. This enables the PCH to be used as a normal ball head for fast levelling adjustment as well as a precision gear head for fine levelling adjustments.

The PCF features a quick release top and includes a 1/4" plate. Cambo QR plate includes a safety lock that prevents your camera to turn loose on the mount.

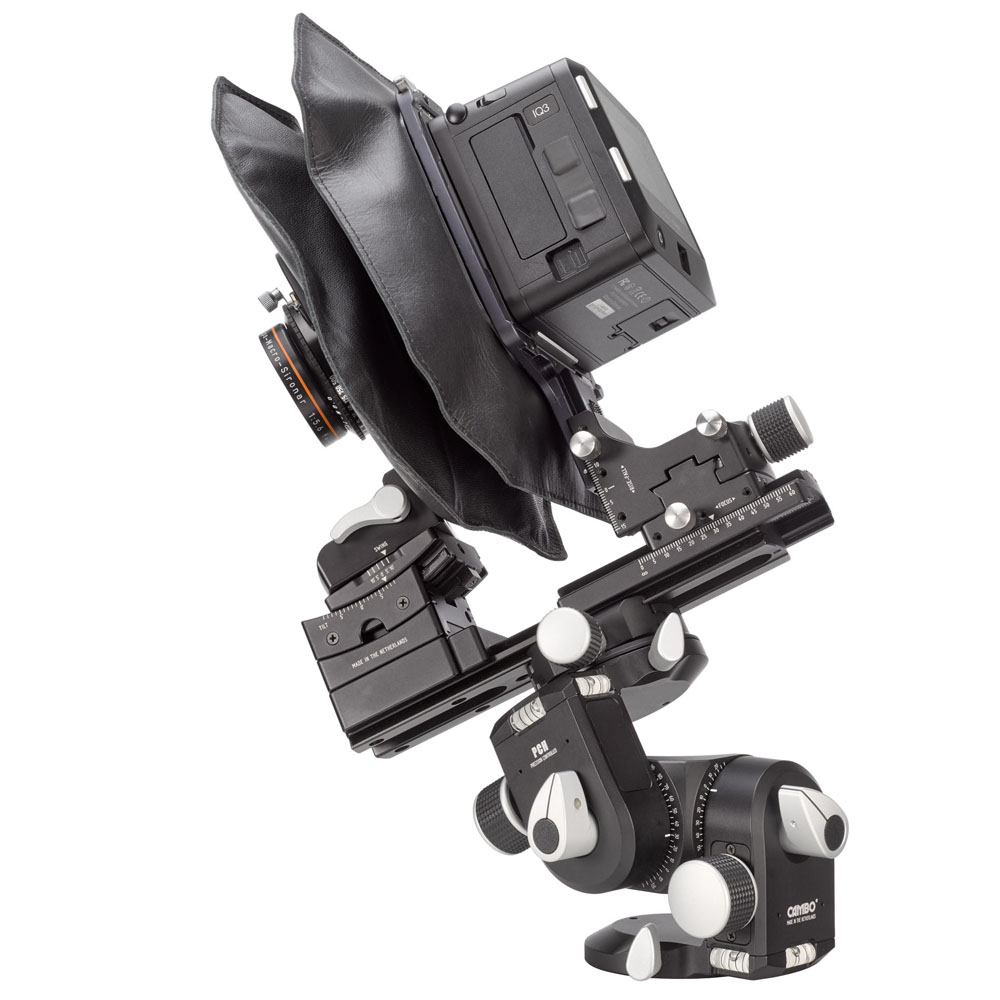

If you have a camera with an ARCA style mount, you can use it directly on the PCF. This includes the Cambo ACTUS and Cambo WRS-series.

 Adjusting the PCF/PCH movements

It is possible to fine tune the PCF/PCH controls to your own preference. Both the manual and geared movements are possible to adjust. Note that fine tuning the PCF/PCH controls is a precise task and should be performed with great care.



Key Features PCF

Position click indication every 90º at the top and bottom plate

140º X-axis tilt (30º backwards 110º forward)

Separate manual (fast) or geared (fine) movement around the X-axis

140º Y-axis pivot (30º backwards 110º forward)

Separate manual (fast) or geared (fine) movement around the Y-axis

360º Z-axis geared panning at the top plate

360º manual panning at the top and bottom plate

X-, Y- and Z-axis rotate over the same point

When X-, Y- and Z-axis locking knobs are open the PCF can move freely like a normal spherical head.

Adjustable geared friction

Adjustable manual friction

Arca compatible QR clamp

4 large spirit levels

Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options.



Size and weight:

height: 130 mm (incl. plate)

width:  110 mm

depth:  102 mm

weight: 1250 gram (excl. plate)

weight: 1300 gram (incl. plate)
