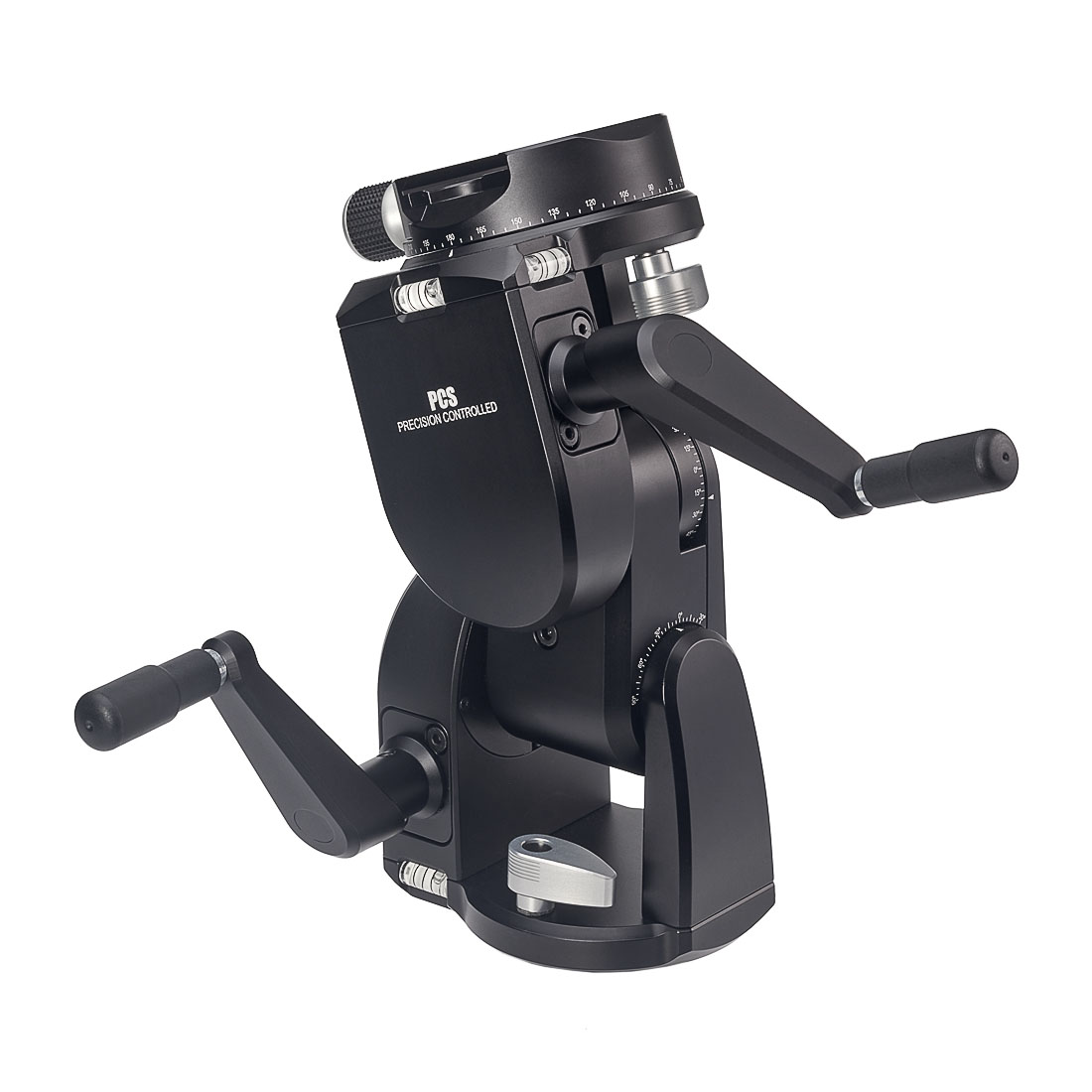

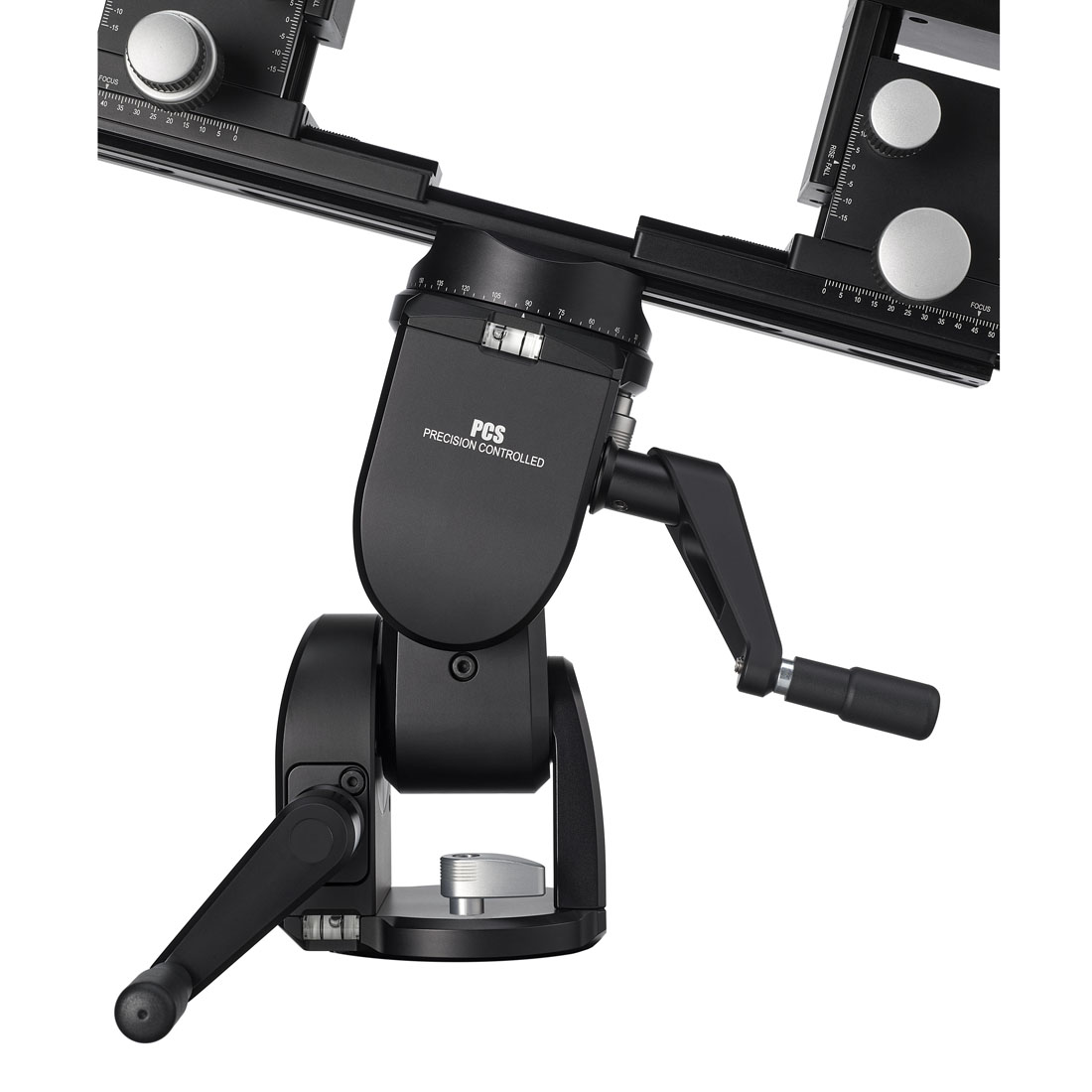

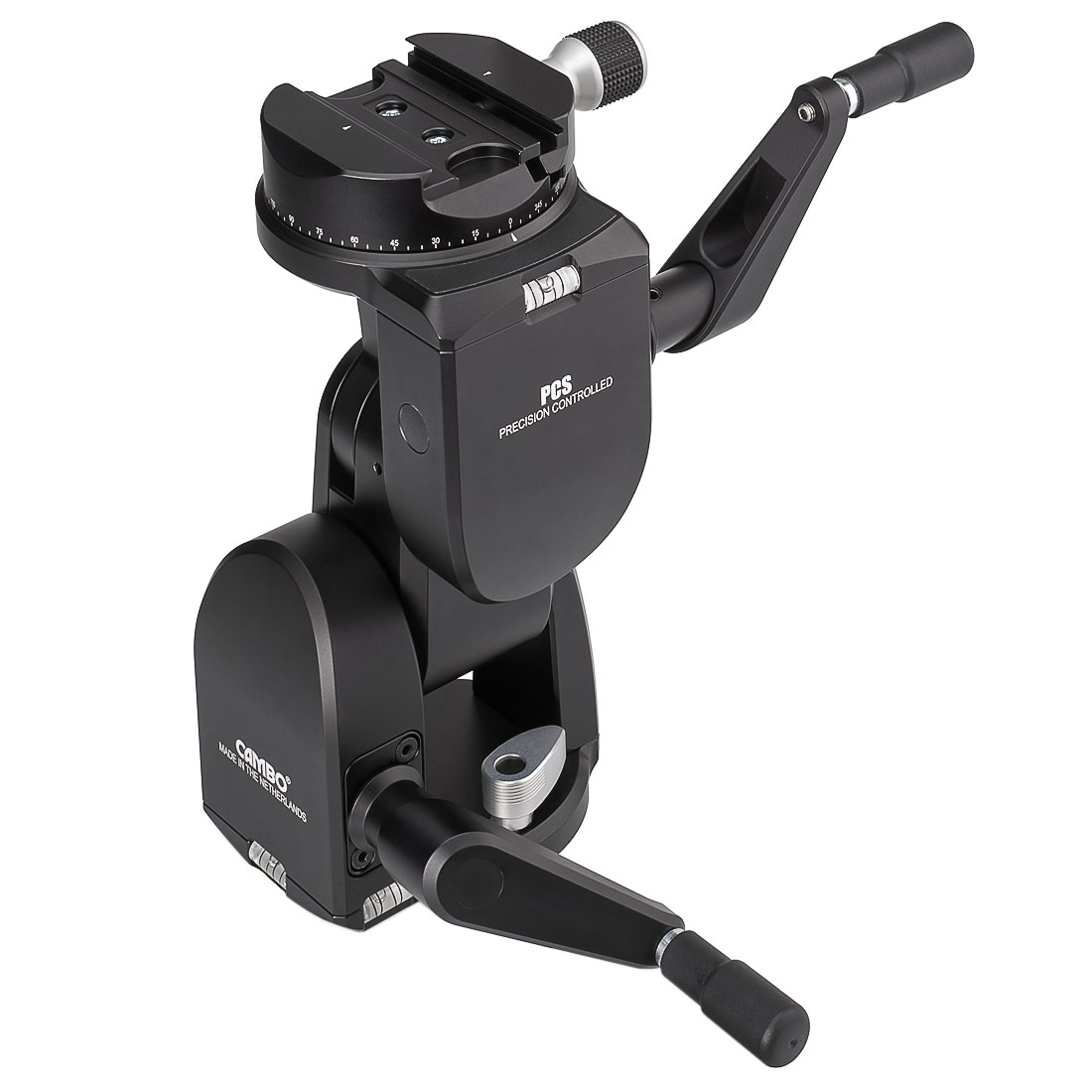

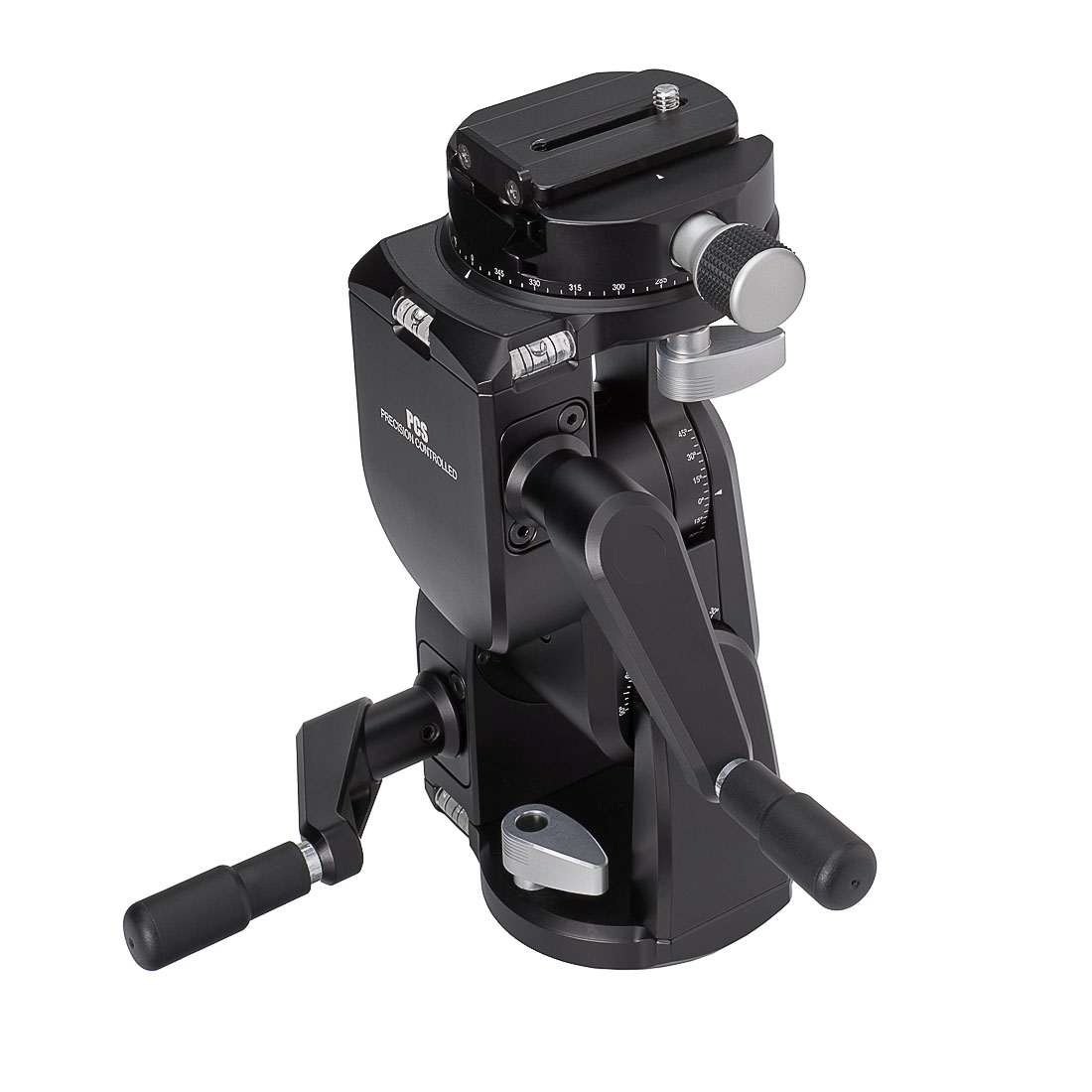

Cambo PCS Gearhead Heavy Duty
Added to basket!
Description:
Cambo PCS tripod head with optimised sturdiness for the heavier camera bodies. It has precision gears for fine-tuned tilt and swing and additional rotation of the top and bottom platform. All geared movements are self-locking and available in any position of the head. The bottom as well as the top can rotate 360ยบ. After levelling, the top rotation can be used for panoramic shooting.
The PCS features a quick release top and includes a 1/4" plate. Cambo QR plate includes a safety lock that prevents your camera to turn loose on the mount.
Product Code:
CAMPCS
Cambo PCS Gearhead Heavy Duty

Cambo PCS key features:

360º manual panning at the top and bottom plate

Position click indication every 90º at the top rotation plate

120º X-axis tilt (30º backwards 90º forward)

135º Y-axis pivot (45º left, 90º right-side)

Arca compatible dovetail QR clamp

4 large spirit levels

Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options.

Removeable cranks for easir transportation

High grade CNC milled aluminium body

High precision laser engraved degree scales

Size and weight:

height: 212 mm (incl. plate)

width:  115 mm (crank disassembled)

depth:  105 mm (crank disassembled)

weight: 2290 gram (excl. plate)
